hzs90 Belt type Twin Shaft concrete mixer js1500 Welded Type 150T

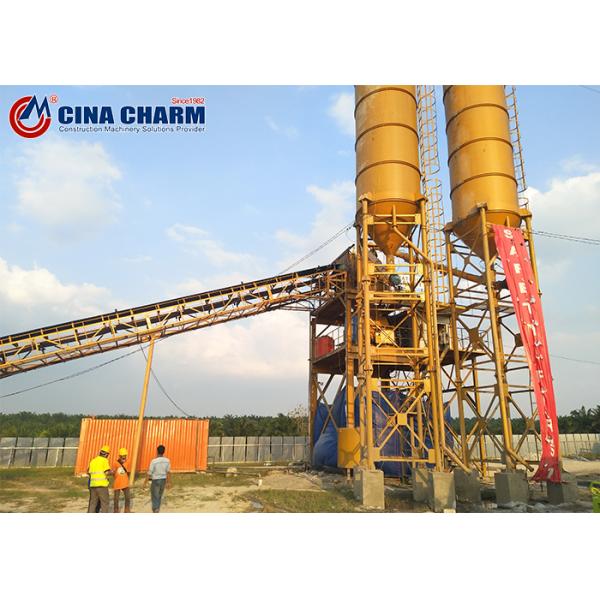

Cement Silo batch mix plant In The Philippines
| Model | HZS90 | HZS120 |
| Discharging Capacity (L) | 1500 | 2000 |
| Charging Capacity(L) | 2400 | 3200 |
| Maximum Productivity(m³/h) | 90 | 120 |
| Charging Model | belt conveyor | belt conveyor |
| Standard Discharging Height(m) | 4.2 | 3.8~4.5 |
| Number of Species of Aggregate | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤80mm | ≤120mm |
| Cement/Powder Silo Capacity(set) | 3×100T | 4×100T or 200T |
| Mixing Cycle Time(s) | 60 | 60 |
| Total Installed Capacity(kw) | 198.06 | 210 |
1. Metering system for batch mix plant
The ChangLi90 concrete mixing plant adopts the weighing system of
the PL2400 concrete batching machine, which is composed of a
storage hopper, a weighing hopper and a transportation mechanism.
The weighing system for powder, water, and admixtures is composed
of weighing hopper, sensor, etc., and the weighing control is
completed by the control system
2. Pneumatic system for batch mix plant
The air source is supplied by the W-1.0/10 type air compressor, and
the air filtered and refueled by the mirror enters each branch
through the air distribution bag. The gas path is divided into
parts such as aggregate feeding, mixer unloading, cement unloading,
cement silo arch breaking, and admixture mixing.
3. Feeding system for batch mix plant
Aggregate supply system. The aggregate supply system of the 90
concrete mixing plant is composed of the feeding mechanism and
weighing system of the PL2400 concrete batching machine, and can be
equipped with 4 types of aggregates.
Powder supply system. This part is composed of cement silo and
cement screw conveyor. The cement is directly transported from the
cement silo to the cement weighing hopper via a screw conveyor for
measurement.
4. Electrical control system for batch mix plant
The electrical control system of the 90 concrete mixing plant is
mainly composed of a console and AC contactor as the core of strong
current control. The complete system is installed in the control
room, which can complete the automatic and semi-automatic control
of the whole production process of batching, lifting, mixing and
unloading. .
5. Mixing system for batch mix plant
The mixing system of 90 concrete mixing plant is composed of
electric motor, belt conveyor, reducer, mixing tank, mixing device,
transmission system, oil supply system and so on. The mixing host
adopts JS1500 double-horizontal shaft forced mixer, which is
suitable for various types of concrete with aggregate particle size
less than or equal to 100mm.
Noise pollution is a problem in the use of construction machinery
and equipment, which not only affects the physical and mental
health of operators, but also affects the surrounding residents.
After our research and development of 120 cement concrete mixing
plant, the noise has been reduced. Let's see how we do it.
concrete batch mix plant The whole station is closed
The whole mixing station of 120 cement concrete mixing station is
completely packaged, the packaging material of the main machine
adopts sound insulation board, and the enclosed material yard
adopts hollow brick for sound insulation, which can reduce the
noise to the minimum.
concrete batch mix plant New mixer
The noise source of 120 cement concrete mixing plant mainly comes
from the main mixing machine. The development of the new mixing
machine can effectively reduce the noise. We have improved the
manufacturing accuracy of the tank body of the main mixing machine,
so that the gap between the liner plate of the tank body and the
mixing blade can be less than 0.5mm during the assembly, so as to
avoid the squeal of the easily stuck stones when the gap is too
large, The special boring machine is used to improve the
parallelism of the two mixing shafts, so as to improve the
stability of the transmission system and reduce the noise.
concrete batch mix plant Cylinder actuator
In 120 cement concrete mixing plant, a large number of cylinders
are used as actuators. When it comes to the end of the stroke, the
impact is large and the noise is high. The gas-liquid combined
buffer cylinder is introduced. When it comes to the end of the
stroke, the hydraulic buffer is used to reduce the noise.
concrete batch mix plant Flexible wear resistant material
The traditional lining plate and blade of main mixer are made of
high chromium wear-resistant cast steel, and the impact noise is
large when mixing sand and stone. The development of new flexible
wear-resistant material and the introduction of special flexible
wear-resistant material as mixing blade can greatly reduce the
noise.
