PLD 2400 concrete automatic batching dosing machine 4 hop with CE ISO certifications and high accuracy

Product Description:

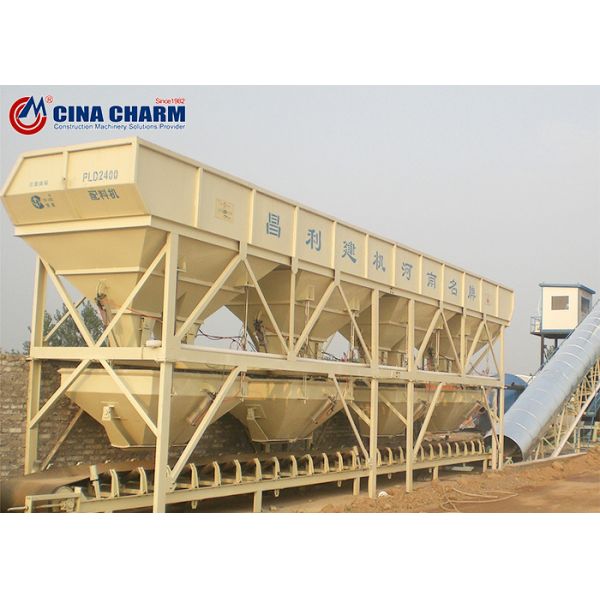

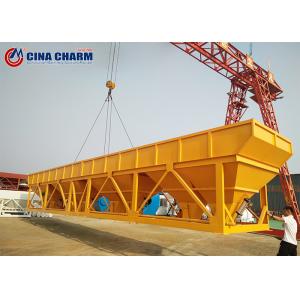

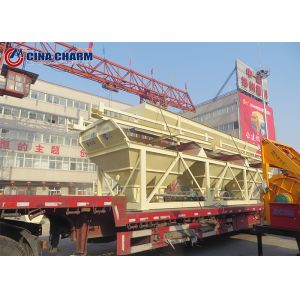

PLD2400 batching machine is small automatic concrete batching equipment, which can be combined with cement silos. PLD2400 adopts imported sensors, which is quick to response and accurate; the single-hopper modular design is flexible for installation. The weighing capacity is 2400L, the batching accuracy is ±2%, production capacity is 120m³/h. PLD2400 batching machine is ideal concrete or brick aggregate batching equipment.

Good quality fully automatic concrete batcher PLD2400 with CE ISO certifications and high cvvurary

PLD Series Concrete Batching machine is a kind of equipment with automatically batching material on the front desk and using mixer together. It can automatically finishing the batching procedures of 3-6 kinds of materials (second grade concrete) such as sand, stone, cement according to users’ requirement. These serial products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation.

Model	PLD2400with THREE storage bins
Weighing hopper	2.4m3
Material hopper	10.3m3*3
Productivity	120m3/h
Batching accuracy	±2%
Amount of batching aggregate	4
Charging height	2885
Power	4KW*4
Outline dimension(L*W*H)	13900*2250*3800

Concrete batching machine with separated weighing discharges each aggregate into a separated hopper with weighing device. Its main advantage is high accuracy weighing, but its cost is high because of the advanced design.Separated hopper weighing is usually used for PLD2400 (120m³/h), LPD3200 (160m³/h) or large batching machines.

PLD series Concrete Batching Machine is a kind of equipment with automatically batching material on the front desk and using mixer together. It can automatically finish the batching procedures of 3~6 kinds of materials (second grade concrete) such as sand, stone, cement, according to user’s design.

These series products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation. After this series concrete batching machine combines with relative concrete mixer, different types and specifications combined concrete mixing plant can be formed.

CINACHARM--Henan Xingchang Import & Export Trading Co., Ltd. is a construction equipment manufacturer and sales company. We have our own factory: Zhengzhou Changli Machinery Manufacturing Co., Ltd. was established in 1982. We are a comprehensive group corporation combining the design, production and sales, located in the "Construction Machinery Base" - Xingyang, Zhengzhou City.

With more than 20 years' development, Zhengzhou Changli has become one of the leading professional manufacturers and exporters of construction machinery in China. Till now, our factory area has reached 120,000sqm with about 1,000 people, including engineers, workers, salesmen, and service staff.

Our main products are concrete mixing/batching plants, stabilized soil mixing stations, concrete batching machines, concrete mixers, concrete pumps, concrete mixing trucks, concrete block making machines, dry-mix mortar production lines, asphalt mixing plants, tower cranes, wheel loaders, cement silos, screw conveyors and other construction machinery.

We are ISO9001:2000 & SGS certified. At present, our products are popular at home and abroad. Holding "High Quality Products and Honest Operation" as our tenet, we have developed international markets very well, such as Russia, Southeast Asia, Central Asia, the Middle East, South Africa, America, etc., totaling more than twenty countries and regions.

Our idea is very simple: sell the best machine with the best service and the best price. We will personally understand the needs of each of our customers and provide the most professional response.

For more details about our construction equipment, welcome to contact us anytime! We look forward to working with you!
