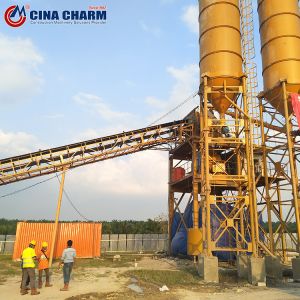

HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant

HZS90 concrete mixing plant Introduction:

Type	HZS90 Concrete Mix Plant
Productivity	90m3/h
Concrete Mixer	JS1500
Concrete Batching Machine	PLD2400
Max. Aggregate Size	80mm
Kinds of Aggregate	4
Aggregate capacity &Accuracy	0~3500KG±2%
Cement capacity & Accuracy	0~1500KG±1%
Water capacity & Accuracy	0~600KG±1%
Additive Capacity & Accuracy	0~50KG±1%
Total weight	118T

Advantages of HZS90 concrete mixing plant:

1. The shaft end of the mixer has a double-layered sealing patent to prevent internal material leakage and dust during operation.
2. The mixer is sprayed with primer, rust protection paint and paint to prevent rust and to prolong the service life of the machine.
3. Before painting, the mixer must be sandblasted to prevent oil, rust and dust from entering the mixer to ensure a good coating effect.
4. The mixing base is supported by an anti-slip plate to facilitate the maintenance of workers and to ensure safety and reliability.
5. The two shafts of the stirrer use drilling techniques to keep the shaft on the same horizontal plane, and both ends of the shaft on the same shaft to make the circle concentric. To prevent a collision of the mixing charm during operation and to prolong the service life of the machine.
6. The mixing cylinder wall has a high manganese lining from Changli, which is easy to dismantle and install. Mangan has hardness and wear resistance, which makes the cylinder more durable. The mixing sheet is also made of manganese alloy to make the blade more durable.
7. CO2-shielded welding is used with high welding resistance, less welding slag and good durability.

Advantages of the batching machine:

1. The machine uses Q235 high quality steel
2. There are two air cylinders on the storage hopper and one air cylinder on the weighing hopper;
3. It can realize the accurate weighing through seperate weighing

CINACHARM--Henan Xingchang Import & Export Trading Co., Ltd. is a construction equipment manufacturer and sales company. We have our own factory: Zhengzhou Changli Machinery Manufacturing Co., Ltd. was established in 1982. We are a comprehensive group corporation combining the design, production and sales, located in the "Construction Machinery Base" - Xingyang, Zhengzhou City.

With more than 20 years' development, Zhengzhou Changli has become one of the leading professional manufacturers and exporters of construction machinery in China. Till now, our factory area has reached 120,000sqm with about 1,000 people, including engineers, workers, salesmen, and service staff.

Our main products are concrete mixing/batching plants, stabilized soil mixing stations, concrete batching machines, concrete mixers, concrete pumps, concrete mixing trucks, concrete block making machines, dry-mix mortar production lines, asphalt mixing plants, tower cranes, wheel loaders, cement silos, screw conveyors and other construction machinery.

We are ISO9001:2000 & SGS certified. At present, our products are popular at home and abroad. Holding "High Quality Products and Honest Operation" as our tenet, we have developed international markets very well, such as Russia, Southeast Asia, Central Asia, the Middle East, South Africa, America, etc., totaling more than twenty countries and regions.

Our idea is very simple: sell the best machine with the best service and the best price. We will personally understand the needs of each of our customers and provide the most professional response.

For more details about our construction equipment, welcome to contact us anytime! We look forward to working with you!
